TIER IV’s Automotive HDR Camera C1, with its dynamic range (HDR), which is equivalent to 120 dB, automotive-grade hardware, and versatile connectivity to various applications, can be employed in the fields of self-driving and driver-assistance vehicles, as well as other applications including autonomously mobile robots, security, and monitoring.
Furthermore, the NVIDIA Jetson AGX Orin has a processing power of over 275 trillion operations per second, more than 8 times of its predecessor, the Jetson AGX Xavier. Yet it still maintains the same palm-sized form factor, pin compatibility, and a comparable price. It is expected to drive advanced robotics, autonomous machinery, and the development of next-generation embedded and edge computing products.

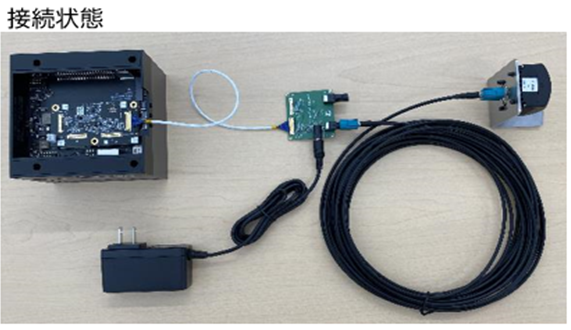

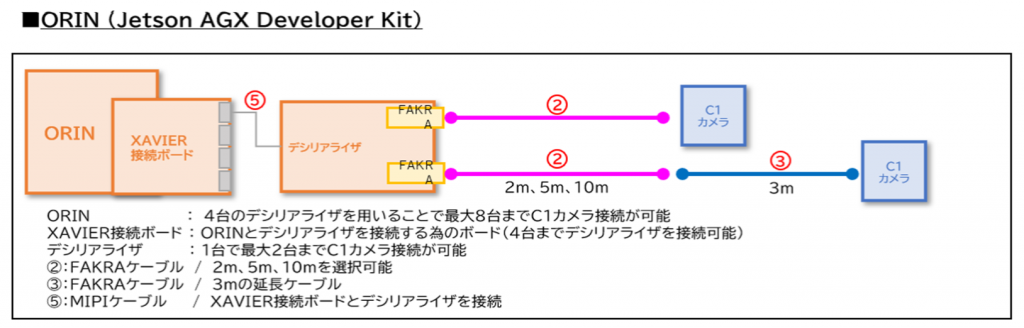

The driver for the C1 camera supports the Orin developer kit and is available as OSS. You can connect it to multiple C1 cameras by using the GMSL adapter board. This kit has excellent recognition performance, functionality, and scalability that can be utilized in various applications including image recognition applications using deep learning.

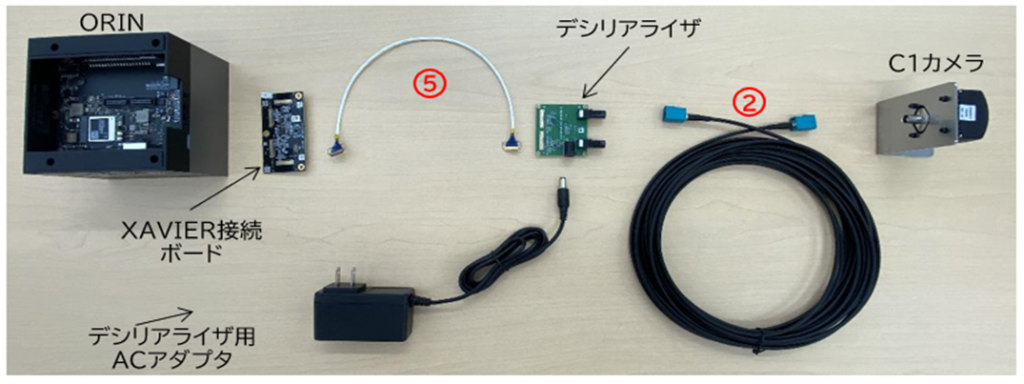

● Kit configuration
Automotive HDR Camera C1
…Lens HFOV selectable: 46 deg,, 85 deg, 120 deg
Jetson AGX Orin developer kit
Leopard Imaging MIPI KIT
KIT/LI-GMSL2-IPX-DESER
KIT/FAW-1233-03 cable
KIT/LI-JXAV-MIPI-ADPT-4CAM
(LI-JTX1-SUB-ADPT)
FAKRA GMSL cable
…Length selectable: 2 m, 5 m, 10 m +3 m extension cable
